FoilStreamTM & TapeStreamTM Narrow Unwinds

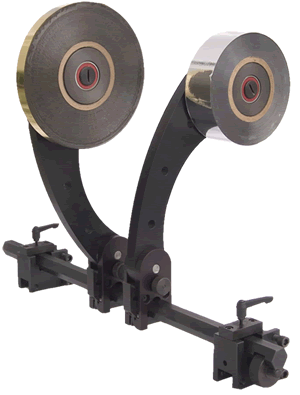

DMS Narrow Foil and Magnetic Tape Unwind Systems
FoilStreamTM Unwind Specifications
 |
Designed for .75” to 3 ” wide rolls of foil or tapes |  |
| |
Allows independent control and close spacing of multiple unwind streams | |
| |
Unique pivot arm design allows roll changes without losing stream positions | |
| |
Features adjustable, non-contact magnetic brake technology for super smooth operation | |
| |
Mechanical core holder for standard 3" cores | |
| |
Easy setup, adjustment and roll changeover | |
| |
Does not require air or electrical power | |
| |
Many mounting positions are possible with our universal hex bar mounting system |
|
| |
No loose parts to fall into press | |
 |
||

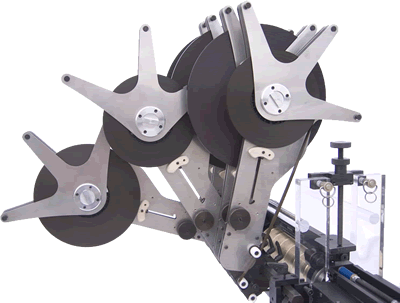

TapeStreamTM Unwind Specifications
| |
Designed for .25” to .625 ” wide rolls of magnetic tapes or scratch off tape or similar products |  |
| |
Allows independent control and close spacing of multiple unwind streams | |
| |
Unique pivot arm design allows roll changes without losing stream positions | |
| |
Accepts industry standard plastic cores | |
| |
Easy setup, adjustment and roll changeover | |
| |
Magnetic roll latch and integral side guide | |
| |
Does not require air or electrical power | |
| |
Many mounting positions are possible with our universal hex bar mounting system | |
| |
No loose parts to fall into press | |
