Unwind / Rewind Module

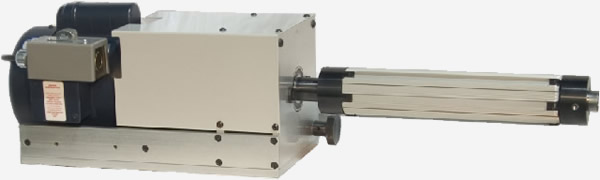

DMS Auxiliary Unwind and Rewind Shaft System
Super Smooth Vibration Free Operation!
Auxiliary Unwind / Rewind Features and Specifications
 |
For use anywhere on your press where you need additional unwind or rewind capability |
| |
Features unique non-contact magnetic eddy current clutch mechanism |
| |
Delivers incredibly smooth and vibration free operation to handle your most tension sensitive thin films or foils |
| |
System features constant and adjustable tension control |
| |
Features a 3 inch ( 76.2mm ) core diameter with pneumatic core holder |
| |
Features a 12 inch ( 381mm ) roll diameter capacity |
| |
System includes a 1 to 3 HP AC motor driven depending on press width |
| |
Handles roll widths from 1 inch ( 25.4 mm ) to press width |
| |
Available for all presses up to 20 inches ( 510 mm ) wide |
| |
Standard module includes numerous threaded holes so you can easily make your own mounting stucture to position where needed |
| |
Optionally, the system can be mounted to your existing die station, a DMS auxiliary die station, or to other areas on your press with a DMS designed mounting tower |
